60-23P型欠速开关是一种费用低、可靠性强、对轴转速及其它旋转装置简单通用的监测装置。欠速开关可应用于皮带机的打滑或超速检测。

欠速开关初放置在防风雨的密封、抗腐蚀外壳内，允许暴露在恶劣环境中。

设备描述

　非接触接近探测器，寿命长、维护费用低

　两螺栓固定，确保安装简单

　一体化结构，集中的控制装置，设定或故障检修简单

　无运动部件、无磨损、安全寿命长

　报警/延迟-旋转设备起动过程中尚未达到工作速度时，10秒钟延迟报警

　延迟报警-当速度下降到可调节设置点以下时报警

技术参数

▲ 电压：＆#8226;110/220VAC，+15%，

         ＆#8226;24VDC

▲ 频率：17-62Hz

▲ 工作温度范围：-20摄氏度　到　+65摄氏度

▲ 报警触点：2个（一个常开，一个常闭）

▲ 操作范围：60/600脉冲/分

▲ 从传感器到铁类元件最远：10mm

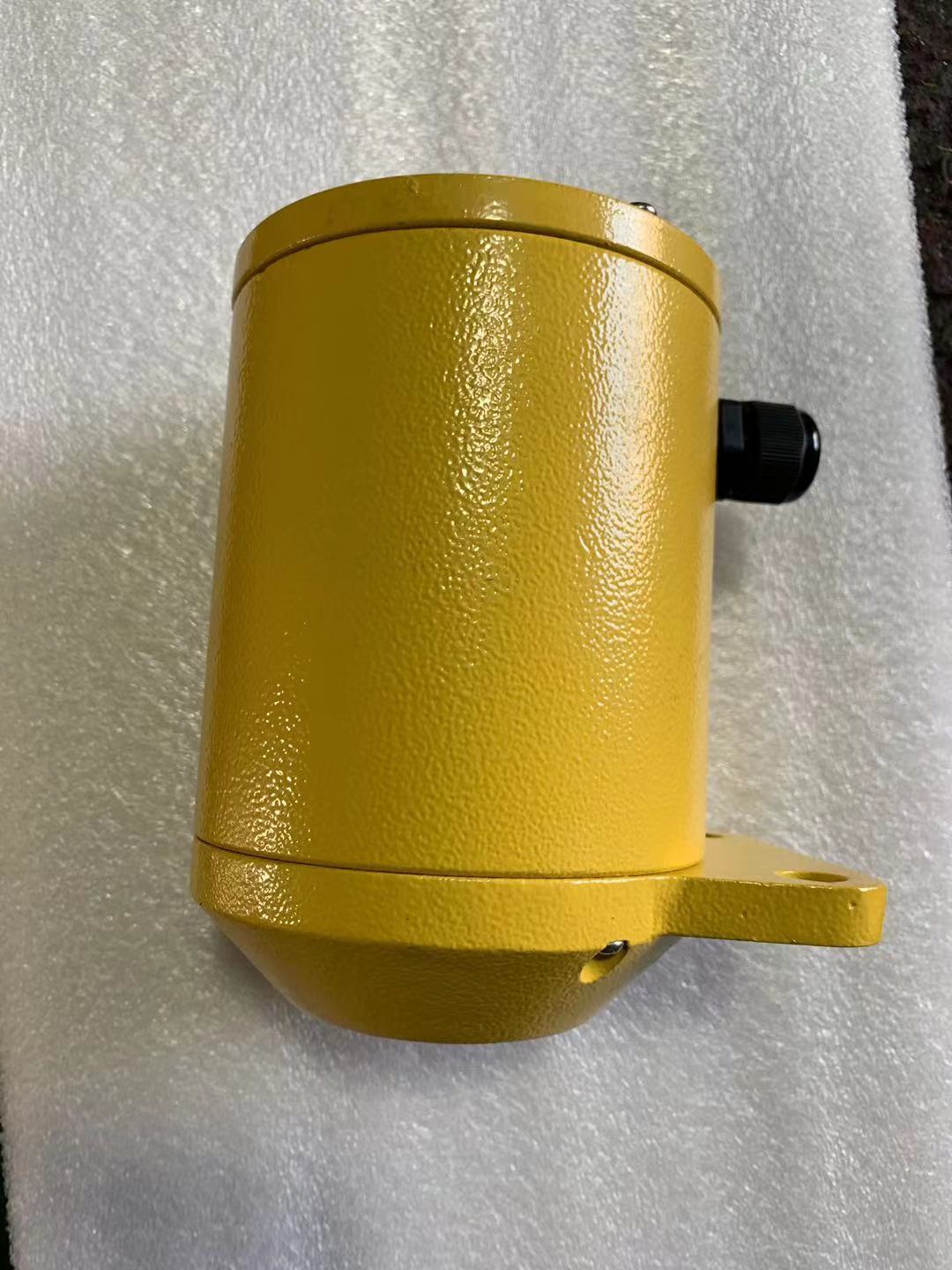

xuzhou ramsey 60－23P 速度开关

The Ramsey Pro-Line Model 60-23P and 60-23PX Under Speed Switches provide a low-cost, dependable, versatile and simple means of monitoring the rotational velocity of a shaft or other rotating equipment.

The Ramsey Model 60-23P Under Speed Switch features one-piece unitized construction. The electronics and output contacts are housed in the same unit with the detector. Only two (2) bolts are required to mount the unit. The non-contacting proximity-type detector has no moving parts. Once the simple installation is completed, the device is virtually maintenance-free.

Two 10-second time delays add important benefits to the package. The first delay prevents nuisance alarms. The second delay accommodates an alarm to normal condition after the under speed status has been corrected.

This switch is housed in a gasketed weather-tight polyammide/fiberglass enclosure (allowing exposure to harsh environments), or a cast aluminum NEMA 9 enclosure for explosion-proof applications.

The unit is ideally suited for a wide variety of industrial applications where the need to monitor for under speed or slippage conditions exist. It may be used on conveyor belts, bucket elevators and other types of rotating equipment.

Features

Non-contacting, proximity-type detector provides longer life and lower operating costs

Two-bolt mounting assures simple installation

Single piece construction with no separate control unit

Easy to set-up and/or troubleshooting

Rugged Housing: weather-tight, polyammide/fiberglass, sturdy, light weight

No moving parts and longer trouble-free life

Alarm/Delay: 10-second delay while rotating equipment reaches operating speed

Alarm to normal delay assures notification when speed drops below adjustable set-point
